Volkswagen Golf Service & Repair Manual: Switch and sender in refrigerant circuit and related connections

  Note
See vehicle-specific refrigerant circuit for switching pressures, removing and fitting switches, together with switch arrangement and versions.
→ Rep. gr.87

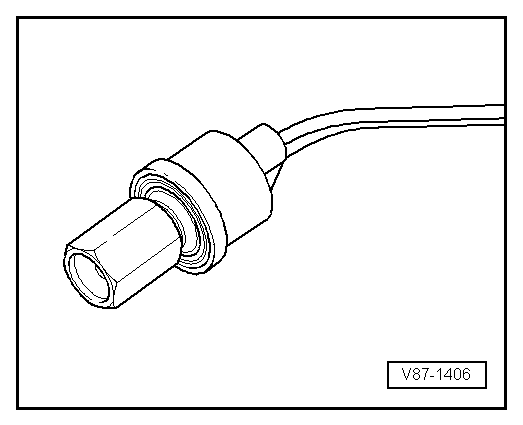

High-pressure switch for air conditioning system -F23-
Function:
Switches radiator fan to next higher speed when pressure increases in refrigerant circuit (approx. 16 bar).


High-pressure switch for air conditioning system -F23

High-pressure switch for magnetic clutch -F118

Function:
In the event of excess pressure in the refrigerant circuit, switches the air conditioner compressor off (at approx. 32 bar).


High-pressure switch for magnetic clutch -F118

Extraction and charging valve, low-pressure side
  Note Torque wrench -V.A.G 1783- with 1/4" ratchet adapter -VAS 6234- Appropriate insert -T10364- to remove valve core ...

Low-pressure switch for air conditioning system -F73
Function: In the event of pressure loss in the refrigerant circuit, switches the air conditioner compressor off (at approx. 2 bar). ...
