Volkswagen Golf Service & Repair Manual: Air conditioning system pressure switch -F129

Volkswagen Golf Service & Repair Manual / Air conditioning system with refrigerant R134a / General information on refrigerant circuit / Switch and sender in refrigerant circuit and related connections / Air conditioning system pressure switch -F129

This pressure switch has 3 functions:

1. Switches radiator fan to next higher speed when pressure increases in refrigerant circuit (approx. 16 bar).

2. Switches the air conditioning system off in the event of excess pressure (approx. 32 bar) (e.g. because of lack of engine cooling).

3. Switches the air conditioning system off in the event of insufficient pressure (approx. 2 bar) (e.g. because of loss of refrigerant).

Note

The air conditioning system pressure switch -F129- replaces the high-pressure switch for air conditioning system -F23-, the low-pressure switch for air conditioning system -F73- and the high-pressure switch for magnetic clutch -F118-.

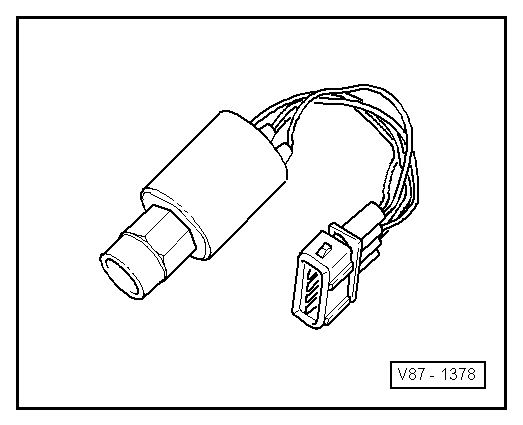

Air conditioning system pressure switch -F129

Connections to valves for switches in the refrigerant circuit

WARNING Danger of freezing injuries. If refrigerant circuit has not been evacuated, refri ...

High-pressure sender -G65

This high-pressure sender -G65- is fitted in place of the air conditioning system pressure switch -F129-. When voltage is applied to the high-pressur ...
