Volkswagen Golf Service & Repair Manual: Extraction and charging valve, low-pressure side

Volkswagen Golf Service & Repair Manual / Air conditioning system with refrigerant R134a / General information on refrigerant circuit / Evacuation and charging valves for quick-release couplings of air conditioner service station on refrigerant circuit / Extraction and charging valve, low-pressure side

Note

Torque wrench -V.A.G 1783- with 1/4" ratchet adapter -VAS 6234-

Appropriate insert -T10364- to remove valve core → Fig.

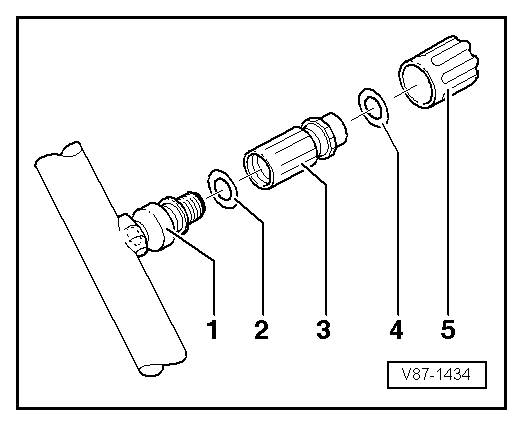

1 -	Connection with external thread and groove for O-ring

2 -	O-ring: 7.6 mm; 1.8 mm identification: black or coloured

3 -	Valve with M10 x 1.25 mm external thread and groove for O-ring (7 ± 1 Nm)

4 -	O-ring for cap, 7.6 mm; 1.8 mm identification: black or coloured

5 -

Cap
