Volkswagen Golf Service & Repair Manual: Removing and installing glove compartment light -W6-

Removing
–  Turn light switch to “0” position.

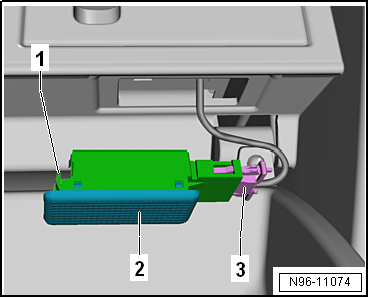

–  Press in locking lug -1- using a flat screwdriver, and lever out glove compartment light -2-.
–  Disconnect electrical connector -3-.
Installing
Install in the reverse order of removal, observing the following:
  Note
If an LED glove compartment light -W6- is faulty, the entire light must be renewed.
–  Insert glove compartment light into opening and engage it on opposite side.
–  Test functionality.
