Volkswagen Golf Service & Repair Manual: Renewing bulb for glove compartment light -W6-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Lights / Renewing bulb for glove compartment light -W6-

Note

If an LED glove compartment light -W6- is faulty, the entire light must be renewed.

Removing

–	Remove glove compartment light -W6- → Chapter.

–	If necessary, lever off heat shield -2- on both sides at arrows -A-.

–	Remove heat shield -2- from glove compartment light -W6--1-.

Renewing bulb for glove compartment light -W6-

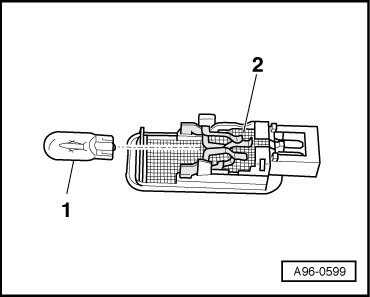

–	Pull bulb -1- out of bulb holder -2- on reverse side of glove compartment light.

Installing

Installation is carried out in the reverse sequence.

–	Test functionality.
