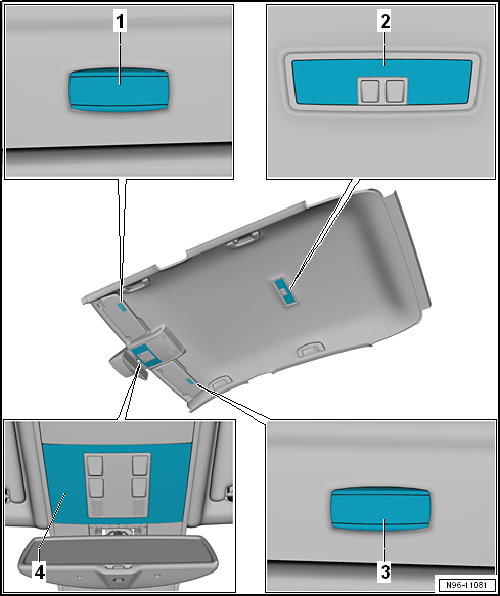

Overview of fitting locations – lights in roof trim

1 -	Driver side illuminated vanity mirror -W20-

In the case of vanity mirrors with LED lighting, the entire light must be renewed in the event of a fault.

Removing and installing → Chapter

2 -	Rear interior light -WX2-

With rear reading light -W11-/-W12-

Removing and installing → Chapter

Removing and installing bulb for rear interior light -W43- → Chapter

Removing and installing bulb for rear reading light -W11-/-W12- → Chapter

3 -	Front passenger side illuminated vanity mirror -W14-

In the case of vanity mirrors with LED lighting, the entire light must be renewed in the event of a fault.

Removing and installing → Chapter

4 -	Front interior light -WX1-

With driver side reading light -W19- and front passenger reading light -W13-

Removing and installing → Chapter

Removing and installing bulb for front interior light -WX1- → Chapter

Removing and installing bulb for front passenger reading light -W13- → Chapter

If an LED front interior light -WX1- is faulty, the entire light must be renewed.

Overview of fitting locations – lights in centre console

Note The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar. 1 - Selector lever position displ ...

Removing and installing glove compartment light -W6-

Removing – Turn light switch to “0” position. – Press in loc ...
