Volkswagen Golf Service & Repair Manual: Removing and installing voltage regulator, manufacturer: Bosch

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Alternator / Removing and installing voltage regulator, manufacturer: Bosch

Special tools and workshop equipment required

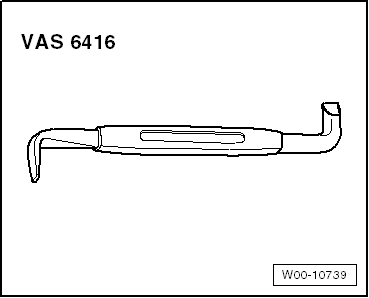

Offset screwdriver for slotted-head screws -VAS 6416-


Removing and installing voltage regulator, manufacturer: Bosch

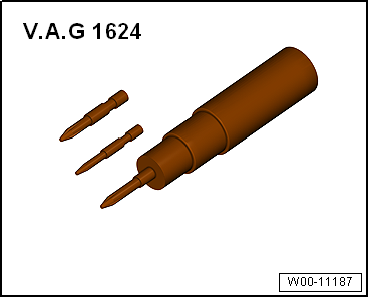

Torque screwdriver -V.A.G 1624-
Removing
–  Remove alternator -C- → Chapter.


Removing and installing voltage regulator, manufacturer: Bosch

–  Using offset screwdriver for slotted-head screws -VAS 6416-, carefully lever off protective cap -1- at fasteners -arrows-.


Removing and installing voltage regulator, manufacturer: Bosch

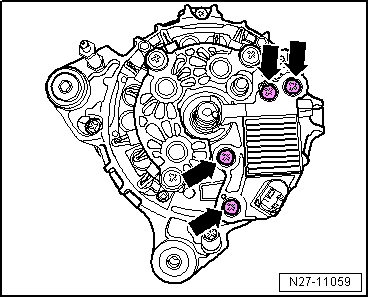

–  Remove bolts -arrows- for voltage regulator -C1-.
–  Remove voltage regulator -C1- from alternator -C-.
Installing
Install in the reverse order of removal, observing the following:


Removing and installing voltage regulator, manufacturer: Bosch

Specified torques
Component Specified torque
Bolts for voltage regulator -C1- 2 Nm
