Volkswagen Golf Service & Repair Manual: Removing and installing turn signal switch -E2-, Kostal

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Steering column switch module / Removing and installing turn signal switch -E2-, Kostal

Note

The turn signal switch -E2-, cruise control system switch -E45- and intermittent wiper switch -E22- are combined to form the steering column combination switch -E595-.

These switches cannot be separated.

If one of the switches is defective, the steering column combination switch -E595- must be renewed as a complete unit.

Removing

–	Remove steering column electronics control unit -J527- → Chapter.

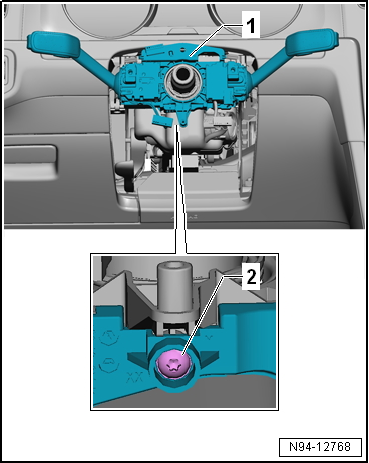

–	Unscrew bolt -2- on underside.

–	Pull off steering column combination switch -E595--1-.

Installing

Installation is carried out in the reverse sequence.
