Volkswagen Golf Service & Repair Manual: Removing and installing striker pin

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Rear door, sliding door, wing doors, central locking / Door components / Removing and installing striker pin

Special tools and workshop equipment required

Torque wrench -V.A.G 1331-

Socket -3410-

Note

Removal and installation are described only for the right door striker pin. The right side is similar.

Socket -3410-

Removing and installing striker pin

Removing

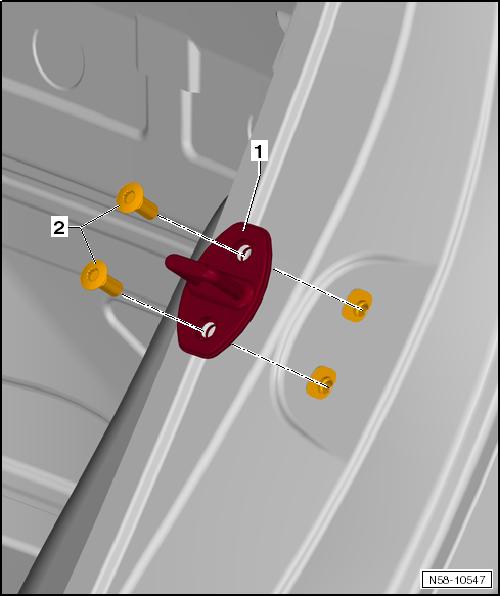

–	Remove bolts -2- and remove striker -1-.

Installing

–	Position striker pin -1- on B-pillar -3- and tighten bolts -2-.

–	Adjusting striker pin → Chapter

	Component	Specified torques
Striker pin	20 Nm
