Volkswagen Golf Service & Repair Manual: Removing and installing inner door cover

Special tools and workshop equipment required

  Note
Removal and installation are described only for the left cover. The right side is similar.
Removing


Removal wedge -3409-
Removal wedge -3409-

Removing and installing inner door cover

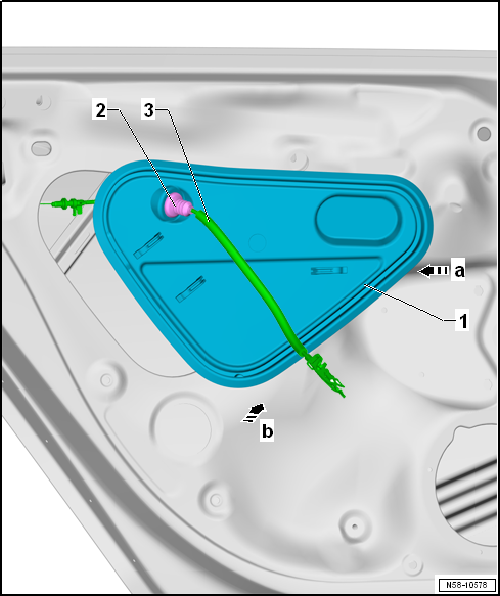

–  Remove rear door trim → General body repairs, interior; Rep. gr.70.
–  Lift lower end of cover -1--arrow a-.
–  Pull cover -1- frontwards out of door -arrow b-.
  Note
If required for subsequent work, pull cable -3- with grommet -2- out of cover -1-. Separate connector at grommet (if there is one).


Installing


Removing and installing inner door cover

–  Fit cable -3- together with grommet -2- into cover -1-.
–  Attach grommet -2- to cover -1-.
–  Insert cover -1- into door -2--arrow a-.
–  Engage cover -1- around circumference -arrow b-.
  Note
Check proper seating of cover by pressing with fingers around circumference.
