Volkswagen Golf Service & Repair Manual: Removing and installing starter, vehicles with double clutch gearbox (DQ200–7F)

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Starter / Removing and installing starter, vehicles with double clutch gearbox (DQ200–7F)

Special tools and workshop equipment required

Torque wrench -V.A.G 1331-


Removing and installing starter, vehicles with double clutch gearbox (DQ200–7F)

Torque wrench -V.A.G 1332-
Removing
–  With ignition switched off, disconnect earth cable from battery -A- → Chapter.
Vehicles with TDI engine
–  Remove air filter housing → Rep. gr.23.
Continued for all vehicles


Removing and installing starter, vehicles with double clutch gearbox (DQ200–7F)

–  If fitted, unscrew nut -1- from upper securing bolt of starter -B-.
–  If fitted, remove earth cable -2-.


Removing and installing starter, vehicles with double clutch gearbox (DQ200–7F)

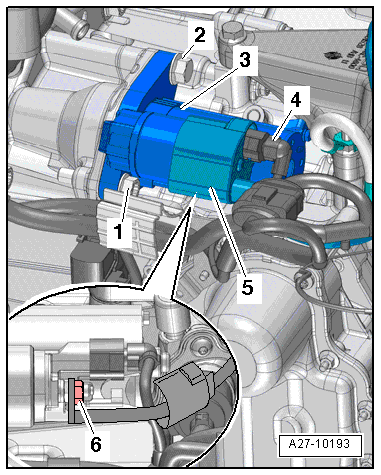

–  Disconnect electrical connector -4-.
–  Press off cap -5-.
–  Unscrew nut -6- and remove terminal 30/B+.
–  Remove bolts -1- and -2- from starter -B--3-.
–  Remove starter -B--3- upwards.
Installing
Install in the reverse order of removal, observing the following:
Specified torques
→ Chapter „Assembly overview - starter“
–  Reconnect battery -A- → Chapter.
