Removing and installing starter, vehicles with double clutch gearbox (DQ250-6F)

Torque wrench -V.A.G 1332-

Removing

–	With ignition switched off, disconnect earth cable from battery -A- → Chapter.

Vehicles with air filter housing installed in front of battery

–	Remove air filter housing → Rep. gr.23.

Continued for all vehicles

–	Remove noise insulation → General body repairs, exterior; Rep. gr.66.

Removing and installing starter, vehicles with double clutch gearbox (DQ250-6F)

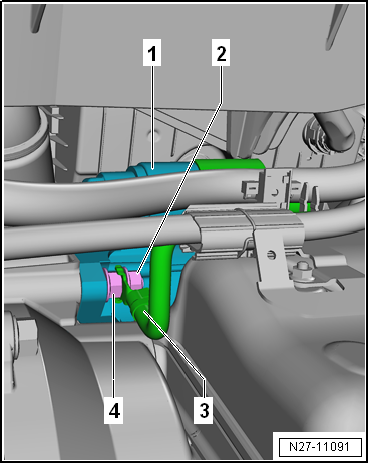

–	If installed, unscrew nut -2- from lower bolt for starter -B--1-.

–	If fitted, remove earth cable -3-.

–	Remove bolt -4- for starter -B--1-.

Removing and installing starter, vehicles with double clutch gearbox (DQ250-6F)

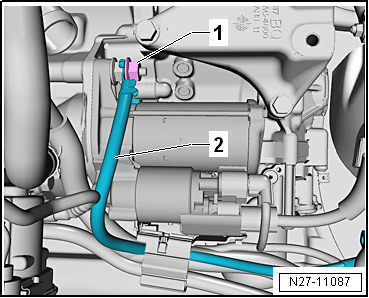

–	If fitted, unscrew nut -1- from upper securing bolt of starter -B-.

–	If fitted, remove earth cable -2-.

Removing and installing starter, vehicles with double clutch gearbox (DQ250-6F)

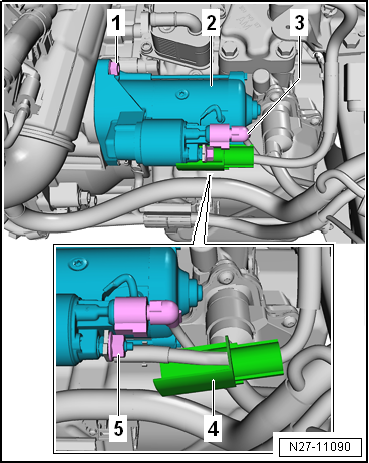

–	Disconnect electrical connector -3-.

–	Press off cap -4-.

–	Unscrew nut -5- and remove terminal 30/B+.

–	Remove bolt -1- for starter -B--2-.

–	Remove starter -B--2- upwards.

Installing

Install in the reverse order of removal, observing the following:

Specified torques

→ Chapter „Assembly overview - starter“

–	Reconnect battery -A- → Chapter.

Removing and installing starter, vehicles with double clutch gearbox (DQ250-6F)
