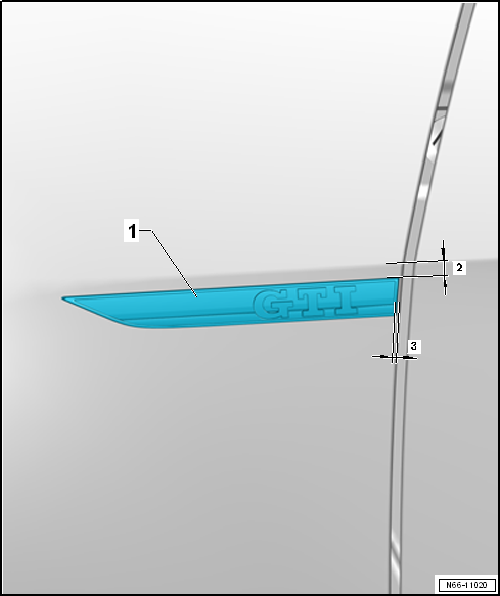

Volkswagen Golf Service & Repair Manual: Dimensions – lettering on wing
Note
| The dimensions shown here for “GTI” as an example are valid for all emblems. |
| 1 - | Emblem |
- Variations in appearance possible depending on the (special) model.
| 2 - | Height dimension |
- 5.0 ± 1 mm, from upper edge of lettering to edge of wing
| 3 - | Horizontal dimension |
- 1.5 ± 1 mm, from outer edge of wing to lettering
Dimensions – lettering on rear lid, “R-Line”
Note
When fitting the lettering, observe the fitting notes
→ Anchor.
1 -
Lettering
Model designation
2 -
...
Dimensions – lettering on wing, “R”
1 -
Emblem
2 -
Height dimension
5.0 ± 1 mm, from upper edge of lettering to edge of wing
3 -
Horizontal dim ...
