Volkswagen Golf Service & Repair Manual: Removing and installing starter, vehicle with manual gearbox

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Starter / Removing and installing starter, vehicle with manual gearbox

Special tools and workshop equipment required

Torque wrench -V.A.G 1331-


Removing and installing starter, vehicle with manual gearbox

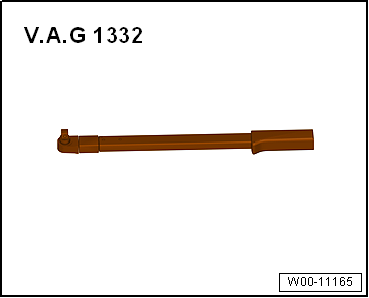

Torque wrench -V.A.G 1332-


Removing and installing starter, vehicle with manual gearbox

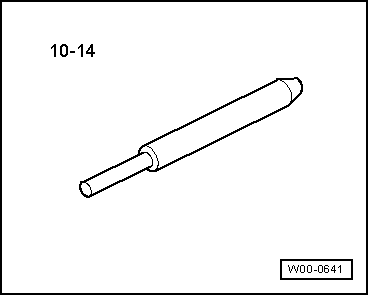

Drift -10 - 14-
Removing
–  With ignition switched off, disconnect earth cable from battery -A- → Chapter.
–  Remove noise insulation → General body repairs, exterior; Rep. gr.66.
Vehicles with TDI engine
–  Remove air filter housing → Rep. gr.23.
Continued for all vehicles


Removing and installing starter, vehicle with manual gearbox

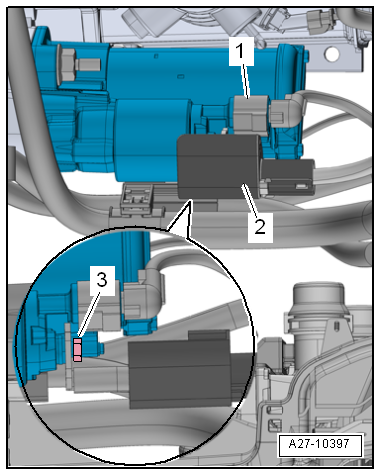

–  Disconnect electrical connector -1-.
–  Press off cap -2-.
–  Unscrew nut -3- and remove terminal 30/B+.


Removing and installing starter, vehicle with manual gearbox

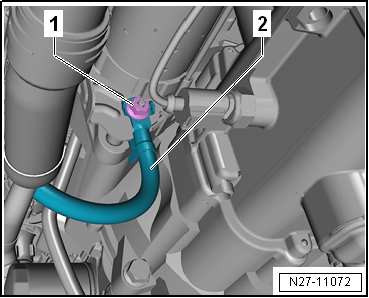

–  If fitted, unscrew nut -1- from upper securing bolt of starter -B-.
–  If fitted, remove earth cable -2-.


Removing and installing starter, vehicle with manual gearbox

–  If fitted, unscrew nut -1- from lower securing bolt of starter -B-.
–  If fitted, remove earth cable -2-.


Removing and installing starter, vehicle with manual gearbox

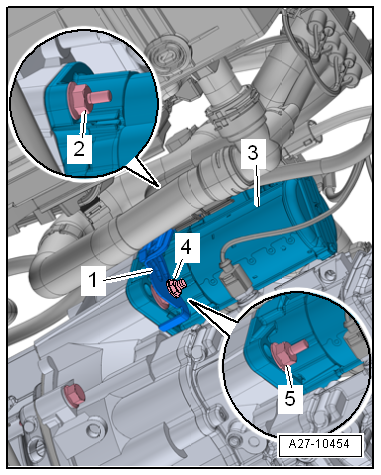

–  Unscrew nut -4- and remove retainer -1- for wiring harness.
  Note
The electrical wiring remains connected.
–  Remove bolts -2- and -5- from starter -B--3-.
–  Remove starter -B--3- downwards.
Installing
Install in the reverse order of removal, observing the following:
Specified torques
→ Chapter „Assembly overview - starter“
–  Reconnect battery -A- → Chapter.


Removing and installing starter, vehicle with manual gearbox
