Volkswagen Golf Service & Repair Manual: Removing and installing poly V-belt pulley without freewheel

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Alternator / Removing and installing poly V-belt pulley without freewheel

Special tools and workshop equipment required

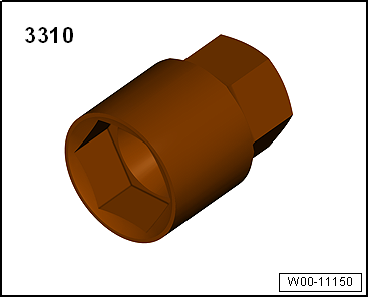

Socket -3310-


Removing and installing poly V-belt pulley without freewheel

Torque wrench -V.A.G 1332-
Removing
–  Remove alternator -C- → Chapter.
–  Clamp alternator -C- in a vice at mounting points.


Removing and installing poly V-belt pulley without freewheel

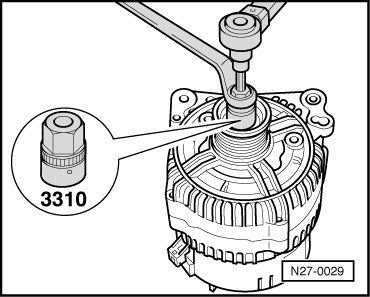

–  Unscrew securing nut of poly V-belt pulley from alternator shaft using socket -3310-.
–  Remove poly V-belt pulley from alternator shaft.
Installing
Install in the reverse order of removal, observing the following:


Removing and installing poly V-belt pulley without freewheel

Specified torques
Component Specified torque
Securing nut for poly V-belt pulley 65 Nm
