Volkswagen Golf Service & Repair Manual: Overview of fitting locations - seat variants

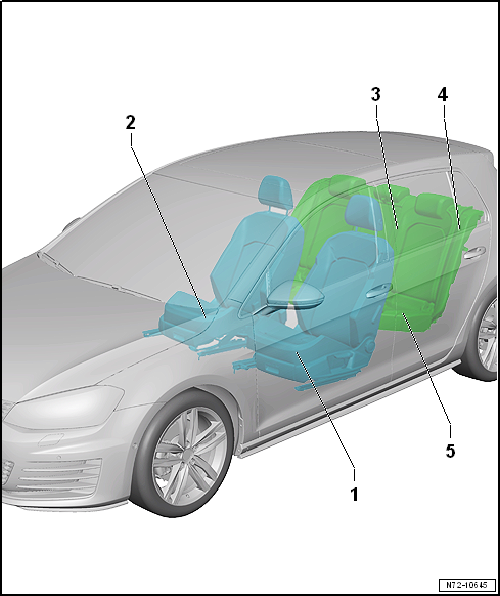

| 1 - | Driver seat |
- Configuration depends on vehicle equipment
- Assembly overview - front seat → Chapter
- Assembly overview - front backrest → Chapter
- Assembly overview - seat pan → Chapter.
| 2 - | Front passenger seat |
- Configuration depends on vehicle equipment.
- Assembly overview - front seat → Chapter
- Assembly overview - front backrest → Chapter
- Assembly overview - seat pan → Chapter
| 3 - | Rear seat backrest |
- Configuration depends on vehicle equipment
- Assembly overview - rear seat backrest → Chapter
| 4 - | Side padding |
- Installed depending on vehicle equipment.
- Assembly overview - side padding → Chapter
| 5 - | Bench seat / individual seats |
- Configuration depends on vehicle equipment
- Assembly overview - bench seat / individual seats → Chapter
