Volkswagen Golf Service & Repair Manual: Removing and installing front interior light/reading light

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Controls / Removing and installing front interior light/reading light

Special tools and workshop equipment required

Removal wedge -3409-

Note

The switch module is an integral part of the front interior light -WX1- and cannot be removed individually.

Removing

Removing and installing front interior light/reading light

–	Remove cover -1- in direction of arrow -A-.

Removing and installing front interior light/reading light

–	Lever off lens of front interior light -WX1- at points marked with -arrows- using removal wedge -3409-.

Only front interior light -WX1- with LED

–	Disconnect electrical connectors.

All versions

Removing and installing front interior light/reading light

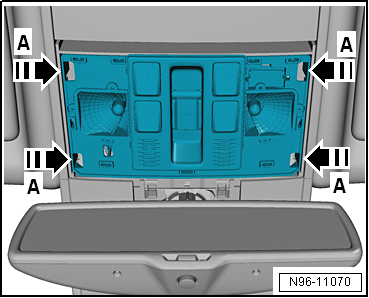

–	Press fasteners in direction of arrow -A- and remove front interior light -WX1-.

–	Disconnect electrical connectors.

Installing

Install in the reverse order of removal, observing the following:

–	Insert front interior light -WX1- into roof aperture.

–	Insert lens into front interior light -WX1-.

–	Test functionality.
