Note

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

Removing

–	Switch off ignition.

–	Remove ignition key, if inserted.

–	Turn light switch to “0” position.

–	Remove wheel housing liner → General body repairs, exterior; Rep. gr.66.

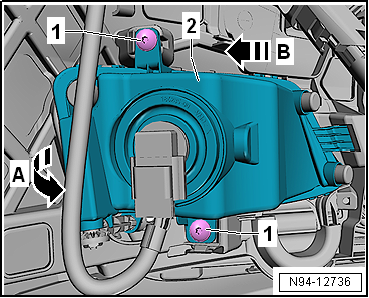

–	Remove bolts -1-.

–	Swing fog light -2- in direction of arrow -A-.

–	Pull fog light -2- out of bumper cover in direction of arrow -B-.

–	Disconnect electrical connector.

Installing

Install in the reverse order of removal, observing the following:

–	Adjusting fog lights → Booklet36.1

Specified torques

→ Chapter „Assembly overview - fog lights, Golf“
