Volkswagen Golf Service & Repair Manual: Removing and installing fog light, GTI and GTD

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Fog lights / Removing and installing fog light, GTI and GTD

Note

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

Removing

–	Switch off ignition.

–	Remove ignition key, if inserted.

–	Turn light switch to “0” position.

–	Remove wheel housing liner → General body repairs, exterior; Rep. gr.66.

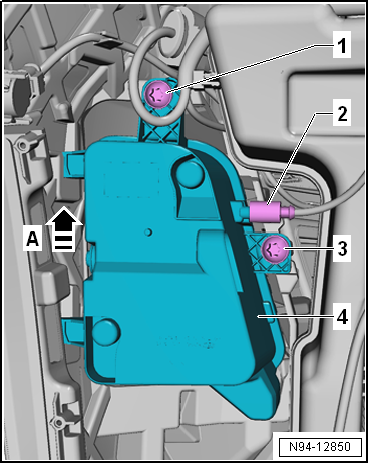

–	Unscrew bolts -1- and -3-.

–	Lift fog light -4- in direction of arrow -A-.

–	Pull fog light -4- out of bumper cover.

–	Disconnect electrical connector -2-.

Installing

Install in the reverse order of removal, observing the following:

–	Adjusting fog lights → Booklet36.1

Specified torques

→ Chapter „Assembly overview - fog lights, GTI and GTD“
