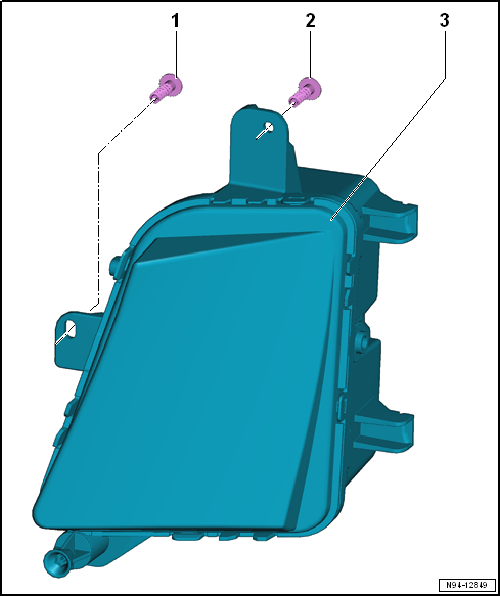

Assembly overview - fog lights, GTI and GTD

1 -  Bolt
Specified torque: 2 Nm
2 -  Bolt
Specified torque: 2 Nm
3 -  Fog lights
These LEDs cannot be renewed. If one of the LEDs fails, the entire fog light needs to be renewed.
Removing and installing → Chapter
Fog lights
Assembly overview - fog lights, Golf 1 -  Fog lights Different versions. Refer to → Electronic Parts Catalogue. Removing and ...

Removing and installing fog light, Golf
  Note Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way. ...
