Volkswagen Golf Service & Repair Manual: Removing and installing cover frame for through-loading aperture

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Removing and installing cover frame for through-loading aperture

Special tools and workshop equipment required



Removal wedge -3409
Removal wedge -3409



Release lever -T10039
Release lever -T10039

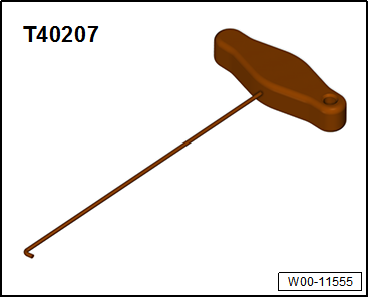

Hook -T40207
Hook -T40207

Removing
–  Fold down centre armrest and open lid for through-loading aperture.

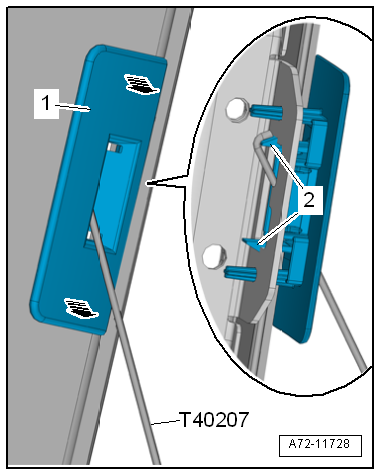

–  Unclip trim -1- from rear seat backrest -arrows- using removal wedge -3409-.
–  To do this, disengage locking lugs -2- alternately using hook -T40207-.


Removing and installing cover frame for through-loading aperture

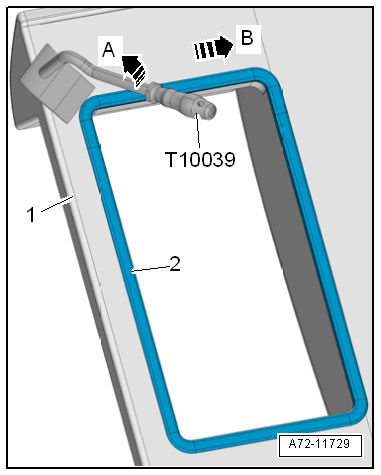

–  Lever cover frame -2- off rear seat backrest -1--arrows A- using removal lever -T10039-.
–  Start in upper left corner and proceed in -direction of arrow B-.
–  Remove cover frame for through-loading aperture.


Removing and installing cover frame for through-loading aperture

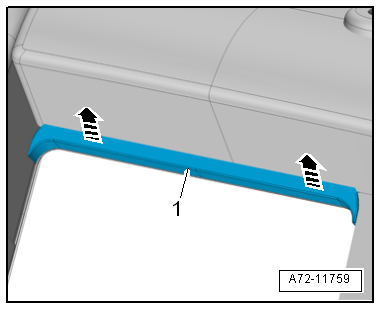

–  Push backrest padding and backrest cover slightly towards side and unclip stop strip -1- for through-loader aperture lid from rear seat backrest -arrows-.
–  Remove stop strip for through-loading aperture.
Installing
Installation is carried out in reverse order.
