Volkswagen Golf Service & Repair Manual: Distinguishing features of jointless wiper blades

Volkswagen Golf Service & Repair Manual / Electrical system, general information / Windscreen wipe/ wash system / Hose repair / Distinguishing features of jointless wiper blades

Distinguishing features of Bosch and Federal Mogul products.

When renewing wiper rubbers, note the make. When renewing wiper blades, the same make must be used.

Wiper blades can be identified according to wiper arm fastening.

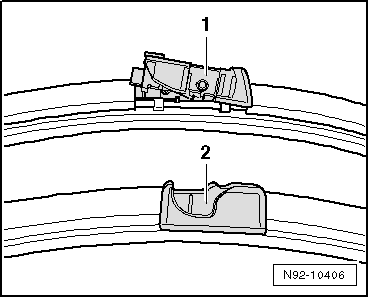

Bosch wiper blades -1 and 2-:

Distinguishing features of jointless wiper blades

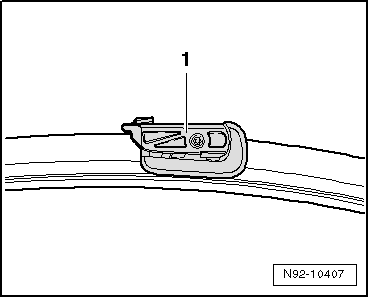

Federal Mogul wiper blades -1-:

Distinguishing features of jointless wiper blades
