Volkswagen Golf Service & Repair Manual: Paint thickness tester -VAS 6272
| Paint thickness tester -VAS 6272- |

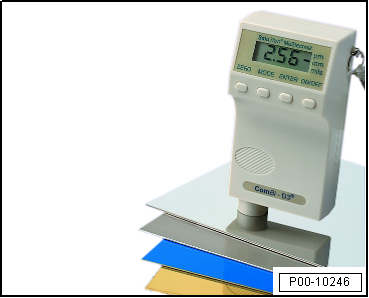

| The paint thickness tester VAS 6272 is a combination tester
for the non-destructive measurement of paint thickness on steel,
ferrous and non-ferrous metals. The menu guide and trouble-free
calibration and setting of new parameters make this an ideal
unit for workshops and quality assurance. The ergonomic shape of
the device with an integrated measuring probe and simple
operation allow extremely precise test results. |
| Measuring range: continuous from 0 to 3500 µm |
|
|
|
