Designation:

Spray can filling device -VAS 6425-

Product description

The spray can filling device is a pneumatic filling device for filling paint spray cans with premixed base coats and top coats without the need for cleaning. The device is suitable for filling 1-pack fill clean spray cans -LLS MAX 100-, which can be ordered via → ETKA (Electronic Parts Catalogue).

Size:

Diameter: 132 mm

Height: 366 mm

Door height: 123 mm

Filling cylinder: diameter 135 mm, height 65 mm, max. fill volume 100 ml

Support base dimensions: 250 x 250 x 2 mm

Technical data

Pneumatic filling principle

Filling pressure: 8-10 bar / 100-130 psi

Bursting point: approx. 60 bar /approx. 870 psi

Operating temperature: +5 °C to +50 °C

Gross weight: 4.23 kg

Net weight 4.00 kg

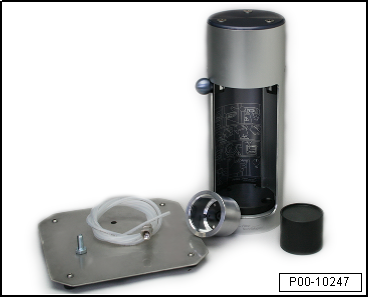

Items supplied:

Spray can filling device including metal cylinder

Compressed air hose including coupling

Securing bolt with washer

Base plate

Adapter for 250 ml can

Spray can filling device -VAS 6425
