Designation:

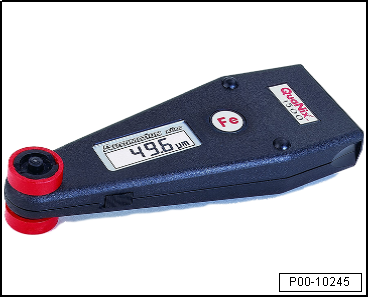

Paint thickness tester -VAS 6197-

Product description

Fully electronic paint thickness tester with 2 independently functioning probes and liquid crystal display. Measurements are possible on various metallic substrates. For example, all non-magnetic layers on steel or iron and all isolating layers on non-ferrous metals such as aluminium and copper. Calibration is not necessary due to the use of Hall sensor technology.

Technical data

Measuring range: 0 to 5000 µm for both sensors

Items supplied:

Paint thickness tester

Case

Reference plates

Battery
