Volkswagen Golf Service & Repair Manual: Overview of fitting locations - operating and display unit, air conditioning system with electric/manual controls

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Operating and display unit / Overview of fitting locations - operating and display unit, air conditioning system with electric/manual controls

  Note
A warning lamp in the instrument panel controls will indicate that the selected function is active.
If the warning lamp does not light up after the AC button is pressed, a fault may be stored in the control unit. Call up event memory using vehicle diagnostic tester. If the entry “Compressor first run not performed” is stored in the event memory, a “Compressor first run” adaption must be carried out in "Guided fault finding" or "Guided functions".
In vehicles with start-stop system, note abort conditions: → Chapter

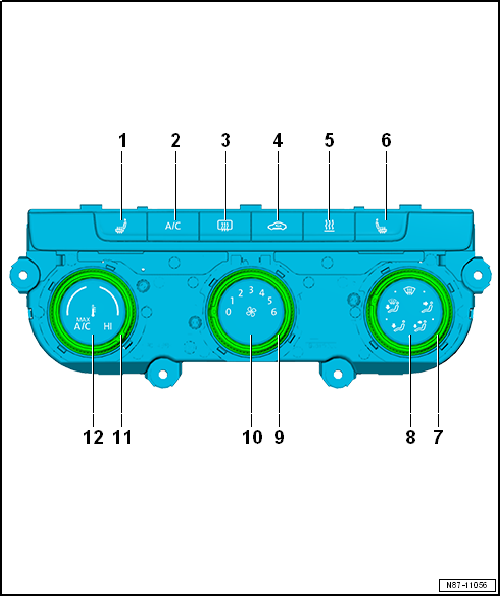

Overview of fitting locations - operating and display unit, air conditioning system with electric/manual controls

1 -  Left seat heating button -E653-
Optional
Seat heater has 3 heat settings. Current setting is shown by LED.
If no LED is lit, seat heating is switched off.
2 -  AC button
If the AC button is deactivated, the air conditioner compressor will be set to almost zero delivery.
3 -  Heated rear window button
Depending on ambient temperature, rear window heating will remain on from 4 to 20 minutes.
4 -  Air recirculation button
  Note
Air recirculation mode changes to fresh air mode when ignition is switched off.
5 -  Instant heat button for switching auxiliary heater On/Off or OFF button for switching heater and air conditioning unit On/Off
Depending on equipment
OFF button activated, Climatronic out of operation. There is no heating and ventilation.
6 -  Right seat heating button -E654-
Optional
Seat heater has 3 heat settings. Current setting is shown by LED.
If no LED is lit, seat heating is switched off.
7 -  Rotary knob for setting air distribution
8 -  Display for air distribution
9 -  Rotary knob for setting blower speed
Left: reduce blower speed.
Right: increase blower speed.
10 -  Display for blower speed
11 -  Rotary knob for setting temperature
Left: reduce temperature.
Right: increase temperature.
12 -  Temperature setting display
