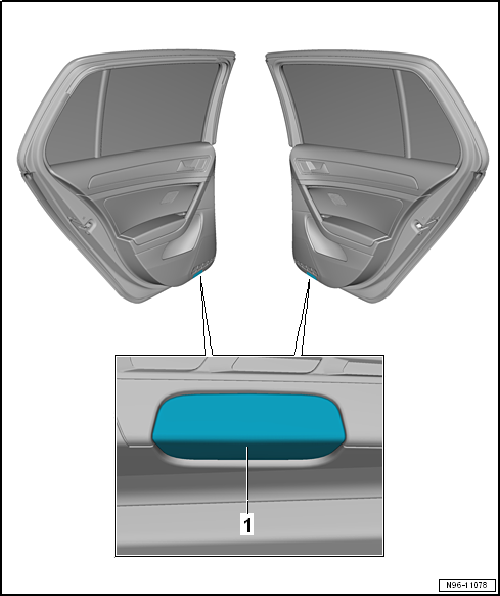

Volkswagen Golf Service & Repair Manual: Overview of fitting locations – lights in rear doors
| 1 - | Door warning lamp and entry light |
| Driver side door warning lamp -W30- and front passenger entry light -W93- |
| Front passenger side door warning lamp -W36- and driver side entry light -W92- |
| Removing and installing → Chapter |
Overview of fitting locations – lights in front doors
Note
The illustration shows fitting locations for LHD vehicles. Fitting
locations for RHD vehicles are similar.
1 -
Driver door opener illuminati ...
Overview of fitting locations – lights in centre console
Note
The illustration shows fitting locations for LHD vehicles. Fitting
locations for RHD vehicles are similar.
1 -
Selector lever position displ ...
