Volkswagen Golf Service & Repair Manual: Overview of fitting locations – lights in front doors

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Lights / Overview of fitting locations – lights in front doors

Note

The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar.

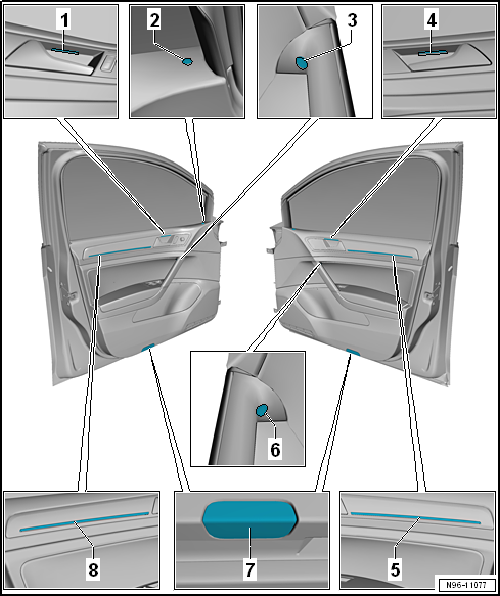

Overview of fitting locations – lights in front doors

1 -	Driver door opener illumination bulb -L108-

Removing and installing → Chapter

2 -	Central locking SAFELOCK function warning lamp -K133-

Removing and installing → Chapter

3 -	Light for driver side interior door handle illumination -L219-

4 -	Front passenger door opener illumination bulb -L109-

Removing and installing → Chapter

5 -	Light 2 for front right door background lighting -L204-

Removing and installing → Chapter

6 -	Light for passenger side interior door handle illumination -L220-

7 -	Door warning lamp and entry light

Driver side door warning lamp -W30- and driver side entry light -W92-

Front passenger side door warning lamp -W36- and front passenger side entry lamp -W93-

Removing and installing → Chapter

8 -	Light 2 for front left door background lighting -L203-

Removing and installing → Chapter

Overview of fitting locations – lights in dash panel

Note The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar. 1 - Front passenger side airbag d ...

Overview of fitting locations – lights in rear doors

1 - Door warning lamp and entry light Driver side door warning lamp -W30- and front passenger entry light -W93- Front passenger side do ...
