Note

The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar.

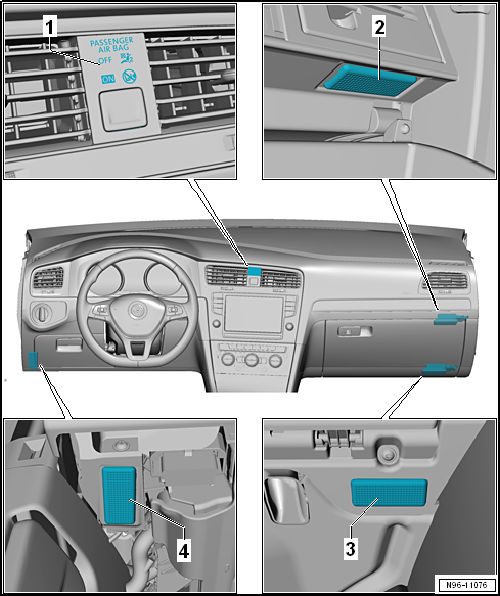

Overview of fitting locations – lights in dash panel

1 -	Front passenger side airbag deactivated warning lamp -K145-

The front passenger side airbag deactivated warning lamp -K145- is removed together with the hazard warning light switch -EX3- → Chapter.

Assembly overview → General body repairs, interior; Rep. gr.69

2 -	Glove compartment light -W6-

Removing and installing → Chapter

3 -	Front right footwell light -K269-

Removing and installing → Chapter

4 -	Front left footwell light -K268-

Removing and installing → Chapter

Lights

...

Overview of fitting locations – lights in front doors
