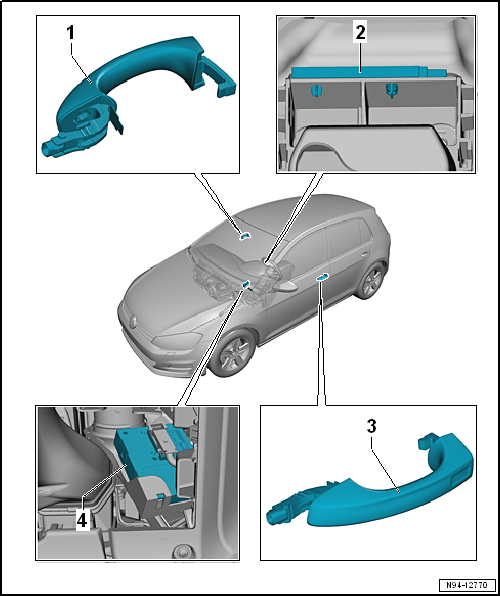

Volkswagen Golf Service & Repair Manual: Overview of fitting locations - front keyless entry system, LHD vehicles
| 1 - |
Front passenger door exterior handle |
| With front passenger door exterior handle contact sensor -G416-.
Removing and installing
→ Chapter |
| With front passenger side aerial for entry and start system -R135-.
Removing and installing
→ Chapter |
| 2 - |
Interior aerial 1 for entry and start authorisation -R138- |
| Removing and installing
→ Chapter |
| 3 - |
Driver exterior door handle |
| With driver door exterior handle contact sensor -G415-. Removing and
installing
→ Chapter |
| With driver side aerial for entry and start system -R134-. Removing
and installing
→ Chapter |
| 4 - |
Interface for entry and start system -J965- |
| Removing and installing
→ Chapter |
1 -
Immobiliser reader coil -D2-
Removing and installing
→ Chapter
2 -
Control unit for electronic steering column ...
1 -
Luggage compartment aerial for entry and start system -R137-
Removing and installing
→ Chapter
2 -
Interface f ...
