Volkswagen Golf Service & Repair Manual: Removing and installing cover for parking lock

Volkswagen Golf Service & Repair Manual / 7- speed dual clutch gearbox 0CW / Gearbox. mechanics, gears, shafts, internal operation / Removing and installing cover for parking lock

Special tools and workshop equipment required

Removal lever -80 - 200-

Removing

Gearbox is installed.

Selector lever positioned in »P«.

Golf, Golf Estate, Golf SV, only diesel engine:

Remove air filter housing → Rep. gr.23.

Continued for all vehicles:

–	Remove battery and battery tray → Electrical system; Rep. gr.27.

Removing and installing cover for parking lock

–	Using removal lever -80 - 200-, lever selector lever cable -1- off gearbox selector lever.

Disregard bolts -2-.

Removing and installing cover for parking lock

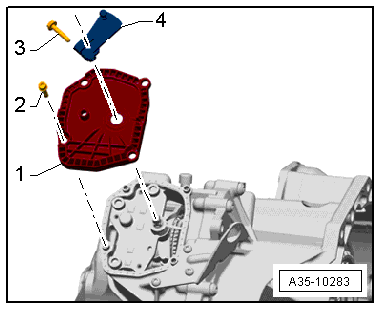

–	Unscrew bolt -3- and detach gearbox selector lever -4-.

–	Unscrew bolts -2- and remove parking lock cover -1-.

Installing

Cover for parking lock must be renewed if seal for selector shaft or seal on cover for parking lock is leaking.

–	Clean sealing surface and cover for parking lock -1-.

–	Fit parking lock cover -1- and screw in bolts -2-.

–	Fit gearbox selector lever -4- and screw in bolt -3-.

Continue installation in reverse order of removal.

–	Install battery and battery tray → Electrical system; Rep. gr.27.

–	Adjust selector lever cable → Chapter.

Removing and installing cover for parking lock

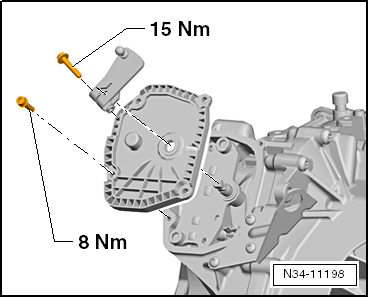

Specified torque settings:

Removing and installing cover for parking lock

Gearbox. mechanics, gears, shafts, internal operation

...

Removing and installing parking lock

Removing Gearbox is installed. – Remove cover for parking lock -1- ...
