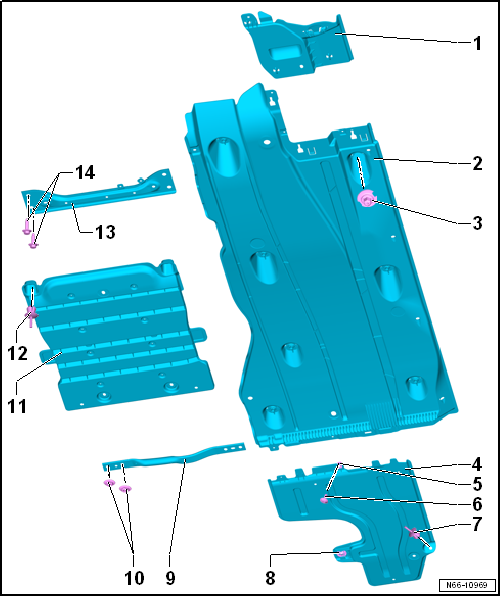

Assembly overview – underbody covers, petrol/diesel

1 -	Front cover

Left and right
Removing and installing → Chapter

2 -	Underbody cover

Left and right
Removing and installing → Chapter

3 -

Nut

With captive
Qty. 7 on each side
2.0 Nm

4 -	Rear underbody cover

Removing and installing → Chapter

5 -

Speed nut

6 -

Bolt

2 Nm.

7 -	Spreader rivet

8 -

Retainer

9 -	Rear tunnel cross-piece

Removing and installing → Chapter

10 -

Nut

Qty. 2 on each side
20 Nm

11 -	Centre underbody panels

Removing and installing → Chapter

12 -	Spreader rivet

Qty. 4

13 -	Front tunnel cross-piece

Removing and installing → Chapter.

14 -

Bolt

Qty. 2 on each side
20 Nm
