Volkswagen Golf Service & Repair Manual: Assembly overview – repair kit for headlight housing, does not apply for LED headlights

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Headlight / Assembly overview – repair kit for headlight housing, does not apply for LED headlights

Assembly overview – repair kit for headlight housing, does not apply for LED headlights

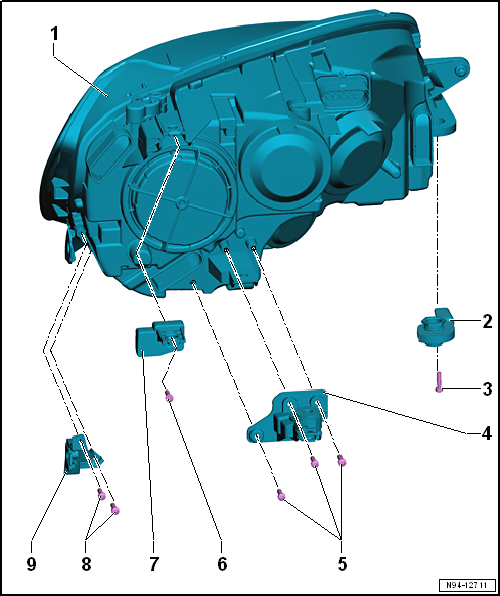

1 -  Headlight
2 -  Inner retaining tab
Removing and installing → Chapter
3 -  Bolt
Qty. 1
Specified torque: 2 Nm
4 -  Rear retaining tab
Removing and installing → Chapter
5 -  Bolt
Qty. 3
Specified torque: 2 Nm
6 -  Bolt
Qty. 1
Specified torque: 2 Nm
7 -  Upper retaining tab
Removing and installing → Chapter
8 -  Bolt
Qty. 2
Specified torque: 2 Nm
9 -  Outer retaining tab
Removing and installing → Chapter
Assembly overview - LED headlights
1 -  LED module for headlight main beam bulb Left headlight main beam bulb -M30- Right headlight main beam bulb -M32- Remov ...

Assembly overview – repair kit for headlight housing, LED headlights only
1 -  Headlight Removing and installing → Chapter 2 -  Inner retaining tab Removing and installing ...
