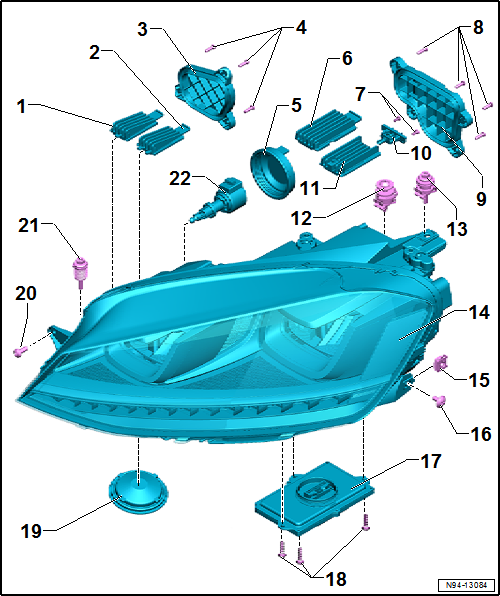

Assembly overview - LED headlights

1 -	LED module for headlight main beam bulb

Left headlight main beam bulb -M30-

Right headlight main beam bulb -M32-

Removing and installing → Chapter

2 -	LED module for headlight main beam bulb

Left headlight main beam bulb -M30-

Right headlight main beam bulb -M32-

Removing and installing → Chapter

3 -	Housing cover

To be used in event of repairs

4 -

Bolt

To be used in event of repairs

Qty. 3

1.5 Nm

5 -	Housing cover

6 -	LED module for headlight dipped beam bulb

Left headlight dipped beam bulb -M29-

Right headlight dipped beam bulb -M31-

Removing and installing → Chapter

7 -

Bolt

Qty. 2

1.5 Nm

8 -

Bolt

To be used in event of repairs

Qty. 4

1.5 Nm

9 -	Housing cover

To be used in event of repairs

10 -

Bracket

With adjuster screw for fine adjustment

11 -	LED module for headlight dipped beam bulb

Left headlight dipped beam bulb -M29-

Right headlight dipped beam bulb -M31-

Removing and installing → Chapter

12 -

Bolt

With compensation element

4 Nm

13 -

Bolt

With compensation element

8 Nm

14 -

Headlight

Front left headlight -MX1-

Front right headlight -MX2-

Removing and installing → Chapter

15 -	Snap-on nut

16 -

Bolt

4 Nm

17 -	Output module 1 for left LED headlight

Output module 1 for left LED headlight -A31-

Output module 1 for right LED headlight -A27-

Removing and installing → Chapter

18 -

Bolt

Qty. 3

1.7 Nm

19 -	Housing cover

20 -

Stop bolt

For longitudinal adjustment of headlight

21 -

Bolt

With banjo bolt

For height adjustment of headlight

4 Nm

22 -	Headlight range control motor

Left headlight range control motor -V48-

Right headlight range control motor -V49-

Removing and installing → Chapter
