Volkswagen Golf Service & Repair Manual: Assembly overview – repair kit for headlight housing, LED headlights only

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Headlight / Assembly overview – repair kit for headlight housing, LED headlights only

Assembly overview – repair kit for headlight housing, LED headlights only

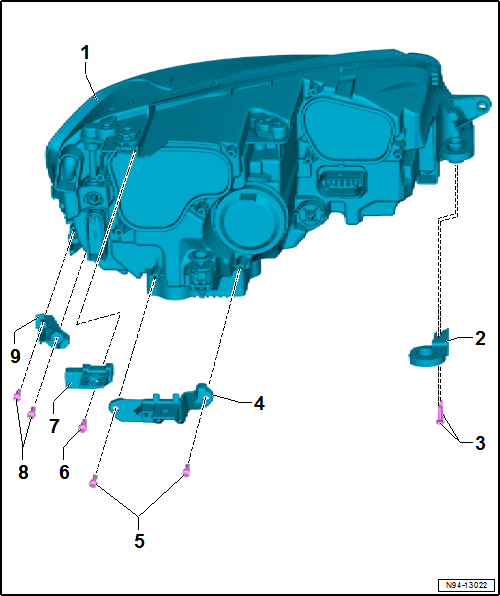

1 -  Headlight
Removing and installing → Chapter
2 -  Inner retaining tab
Removing and installing → Chapter
3 -  Bolt
Qty. 2
2 Nm
4 -  Rear retaining tab
Removing and installing → Chapter
5 -  Bolt
Qty. 2
2 Nm
6 -  Bolt
2 Nm
7 -  Upper retaining tab
Removing and installing → Chapter
8 -  Bolt
Qty. 2
2 Nm
9 -  Outer retaining tab
Removing and installing → Chapter
Assembly overview – repair kit for headlight housing, does not apply for LED headlights
1 -  Headlight 2 -  Inner retaining tab Removing and installing → Chapter 3 -  Bolt ...

Assembly overview - daytime running lights
1 -  LED module for daytime running light and side light Left LED module for daytime running light and side light -L176- Right LED module fo ...
