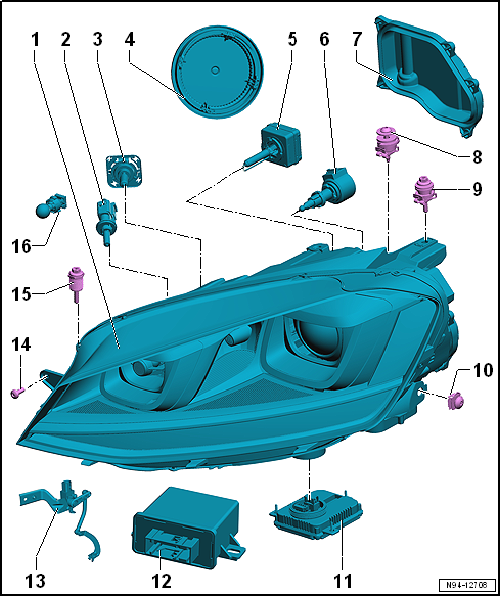

Assembly overview - gas discharge headlight

1 -

Headlight

Removing and installing → Chapter

2 -	Front turn signal bulb

Front left turn signal bulb -M5-

Front right turn signal bulb -M7-

Removing and installing → Chapter

3 -	Cornering light bulb

Left cornering light bulb -L148-

Right cornering light bulb -L149-

Removing and installing → Chapter

4 -	Housing cover

5 -	Gas discharge bulb

With integrated starter unit

Left gas discharge (xenon) bulb -L13-

Right gas discharge (xenon) bulb -L14-

Removing and installing → Chapter

6 -	Headlight range control motor

Left headlight range control motor -V48-

Right headlight range control motor -V49-

Removing and installing → Chapter

7 -	Housing cover

With bolts

Qty. 5

Specified torque: 1.5 Nm

8 -

Bolt

With compensation element

Specified torque: 4 Nm

9 -

Bolt

With compensation element

Specified torque: 8 Nm

10 -

Bolt

Specified torque: 4 Nm

11 -	Gas discharge bulb control unit

Left gas discharge bulb control unit -J343-

Right gas discharge bulb control unit -J344-

Removing and installing → Chapter

Specified torque: 1.7 Nm

12 -	Headlight range control unit -J431-

Removing and installing → Chapter

13 -	Vehicle level sender

Removing and installing → Running gear, axles, steering; Rep. gr.43.

14 -

Stop bolt

For longitudinal adjustment of headlight

15 -

Bolt

With banjo bolt

For height adjustment of headlight

Specified torque: 4 Nm

16 -	Daytime running light bulb

Left daytime running light bulb -L174-/right daytime running light bulb -L175-

Removing and installing → Chapter
