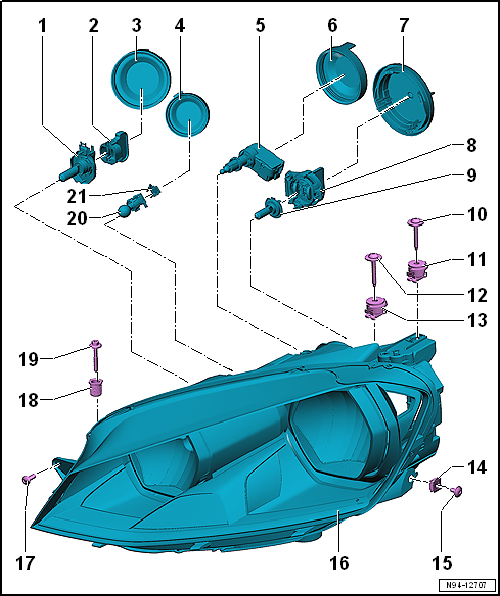

Assembly overview - dual halogen headlight

1 -	Bulb for side lights/daytime running lights/main beam headlights

The bulb has 3 functions:

Left side light bulb -M1-/right side light bulb -M3-

Left daytime running light bulb -L174-/right daytime running light bulb -L175-

Left headlight main beam bulb -M30-/right headlight main beam bulb -M32-

Removing and installing → Chapter

2 -

Grip

For bulb for daytime running lights/main beam headlights.

3 -	Housing cover

4 -	Housing cover

5 -	Headlight range control motor

Left headlight range control motor -V48-

Right headlight range control motor -V49-

Removing and installing → Chapter

6 -	Housing cover

7 -	Housing cover

8 -	Bulb holder

For headlight dipped beam bulb.

9 -	Headlight dipped beam bulb

Left headlight dipped beam bulb -M29-

Right headlight dipped beam bulb -M31-

Removing and installing → Chapter

10 -

Bolt

For securing on upper longitudinal member.

Specified torque: 8 Nm

11 -	Adjustment element

12 -

Bolt

Only needs to be loosened.

For securing on headlight holder.

Specified torque: 4 Nm

13 -	Compensation element

14 -	Snap-on nut

15 -

Bolt

For securing on bumper guide.

Specified torque: 4 Nm

16 -

Headlight

Removing and installing → Chapter

17 -

Stop bolt

For aligning headlight parallel to bonnet edge.

18 -	Banjo bolt

For height adjustment of headlight

19 -

Bolt

For securing on lock carrier.

Specified torque: 4 Nm

20 -	Front turn signal bulb

Front left turn signal bulb -M5-

Front right turn signal bulb -M7-

Removing and installing → Chapter

21 -

Grip

For front turn signal bulb
