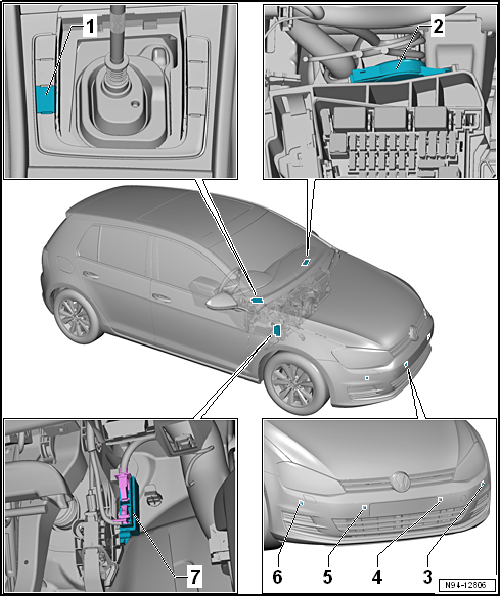

Volkswagen Golf Service & Repair Manual: Assembly overview - front parking aid, RHD vehicles
| 1 - |
Parking aid button -E266- |
| Removing and installing
→ Chapter |
| 2 - |
Front parking aid warning buzzer -H22- |
| Only for 8-channel parking aid |
| Removing and installing
→ Chapter |
| 3 - |
Front left parking aid sender -G255- |
| Removing and installing
→ Chapter |
| 4 - |
Front centre left parking aid sender -G254- |
| Removing and installing
→ Chapter |
| 5 - |
Front centre right parking aid sender -G253- |
| Removing and installing
→ Chapter |
| 6 - |
Front right parking aid sender -G252- |
| Removing and installing
→ Chapter |
| 7 - |
Parking aid control unit -J446- |
| Removing and installing
→ Chapter |
1 -
Electrical connector
2 -
Spreader clip
3 -
Rear parking aid warning buzzer -H15-
Removing and inst ...
1 -
Electrical connector
2 -
Spreader clip
3 -
Rear parking aid warning buzzer -H15-
Removing and inst ...
