Volkswagen Golf Service & Repair Manual: Assembly overview - rear parking aid, LHD vehicles

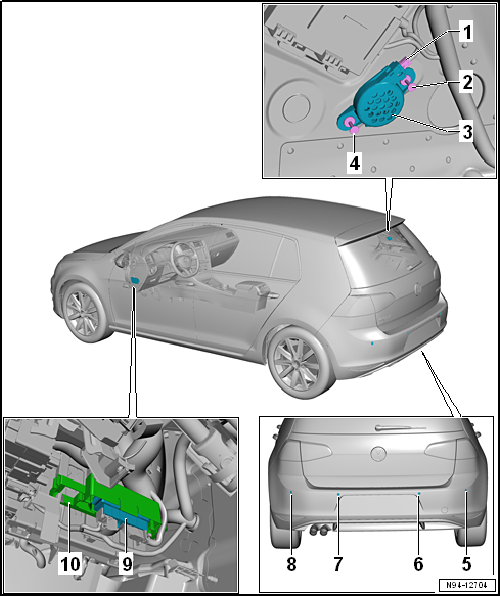

Assembly overview - rear parking aid, LHD vehicles

1 -  Electrical connector
2 -  Spreader clip
3 -  Rear parking aid warning buzzer -H15-
Removing and installing → Chapter
4 -  Spreader clip
5 -  Rear right parking aid sender -G206-
Removing and installing → Chapter
6 -  Rear centre right parking aid sender -G205-
Removing and installing → Chapter
7 -  Rear centre left parking aid sender -G204-
Removing and installing → Chapter
8 -  Rear left parking aid sender -G203-
Removing and installing → Chapter
9 -  Parking aid control unit -J446-
Removing and installing → Chapter
10 -  Bracket
For parking aid control unit -J446-
Removing and installing → Chapter
Assembly overview - front parking aid, LHD vehicles
1 -  Front parking aid warning buzzer -H22- Only for 8-channel parking aid Removing and installing → Chapter 2&n ...

Assembly overview - front parking aid, RHD vehicles
1 -  Parking aid button -E266- Removing and installing → Chapter 2 -  Front parking aid warning buzzer -H22- ...
