Volkswagen Golf Service & Repair Manual: Upgrade kit -VAS 1978/50-

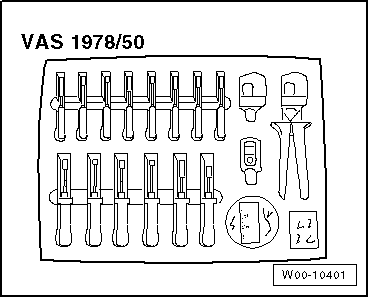

Upgrade kit -VAS 1978/50- is required to bring the “old”wiring harness repair set -VAS 1978- up to the latest standard of wiring harness repair set -VAS 1978A-. The upgrade kit comprises of 4 assembly and 10 release tools, a new set of crimping pliers for crimp connectors with head adapter 0.35 - 2.5 mm2-VAS 1978/1-1-, 4.0 - 6.0 mm2-VAS 1978/2 A- and head adapter for JPT contacts -VAS 1978/9-1-. Also included are new stickers, a new set of operating instructions, crimp connectors for 0.35 mm2 cable cross-section and a roll of black felt adhesive tape.


Upgrade kit -VAS 1978/50-
