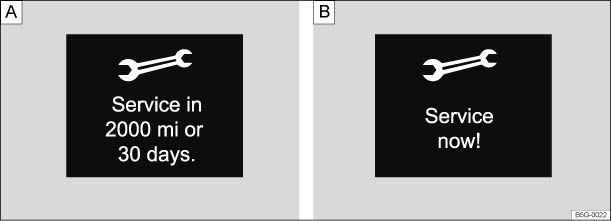

Fig. 14 In the instrument cluster display, A: Service warning, B: Service due
Fig. 15 Service information display in the infotainment system
The service display is shown on the instrument cluster   and in the infotainment system   .
Volkswagen services are divided into two categories, with oil change, e.g. oil change service, and without oil change, e.g. inspection.
In vehicles with fixed service, services take place at predefined intervals.
The service intervals are calculated on an individual basis in vehicles with flexible service. Advances in technology have brought about a considerable reduction in servicing requirements. An oil change service must only be carried out when required by the vehicle. The individual conditions in which the vehicle is used, as the driver's personal driving style, are taken into account. The service reminder is displayed 30 days before the service is due. The distance is rounded to the nearest 100 km; the remaining time is rounded to full days.
Service warning
If an oil change service or inspection is due soon, a service warning will appear the next time the ignition is switched on   A.
The number of kilometres or amount of time shown correspond to the maximum number of kilometres or maximum time that can still be driven before the next service.
Service
If a service is due, an acoustic signal will sound and the spanner
symbol with the message Service now! will appear for
a few seconds in the instrument cluster display when the ignition is switched on.
  B.
Accessing a service message
You can access the current service message when the ignition is switched on, the engine is not running, and the vehicle is stationary:
Service information   can also be displayed in the infotainment system by pressing
the
button and the
and Service function buttons   .
Resetting the service interval display
If the service was not performed by a Volkswagen workshop, the display can be reset as follows:
The service message will disappear after a few seconds, when the engine is running,
or when the
button on the windscreen wiper lever or the
button
on the multifunction steering wheel is pressed.
If the vehicle battery was disconnected for long periods in vehicles with flexible service, the system cannot calculate the time at which the next service is due. The information shown in the service interval display may therefore be incorrect. If this is the case, please heed the maximum permissible service intervals listed in the ⇒ BookletService Schedule, .
