Volkswagen Golf Service & Repair Manual: Special pliers with insert

Volkswagen Golf Service & Repair Manual / Electrical system, general information / Wiring / Wiring harness and connector repairs / Special pliers with insert

The special pliers without insert -VAS 1978/1- with insert for special pliers -VAS 1978/2- is part of the wiring harness repair set -VAS 1978- and is used to crimp connectors during wiring harness repairs.

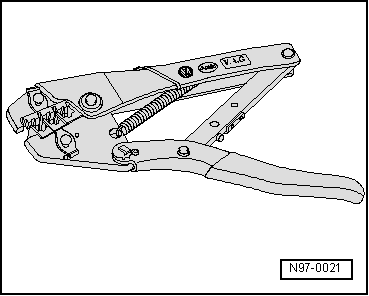

Special pliers with insert

Colour of crimp connector	Colour of crimp recess	Wiring cross section
Yellow	Yellow	0.35 mm²
Red	Red	0.5 mm² - 1.0 mm²
Blue	Blue	1.5 mm² - 2.5 mm²
Yellow	Yellow	4.0 mm² - 6.0 mm²

Note

As an alternative, the connectors can also be crimped with crimping pliers (base tool) -VAS 1978/1-2- in conjunction with head adapters -VAS 1978/1-1- or -VAS 1978/2A- → Chapter.

Ensure without fail that the correct crimp recess is chosen for the crimp connectors being used.

The insulation on the wires must not be crimped.

Release tool set -VAS 1978/35

Release tool set -VAS 1978/35- serves as a means of releasing various primary and secondary locking devices in Group vehicles. The set comprises 26 different tools wh ...

Release tools for contacts

The various release tools serve as a means of detaching the different contacts from the contact housings without damage. A selection of release tools ...
