Volkswagen Golf Service & Repair Manual: Release tool set -VAS 1978/35

Volkswagen Golf Service & Repair Manual / Electrical system, general information / Wiring / Wiring harness and connector repairs / Release tool set -VAS 1978/35

Release tool set -VAS 1978/35- serves as a means of releasing various primary and secondary locking devices in Group vehicles. The set comprises 26 different tools which can be use to fit or release for example round connector systems, flat contacts with one or two fasteners and also single wire seals.

Allocation of the correct release tool to the respective locking devices can be gleaned from the table in the → operating instructions of VAS 1978/35.

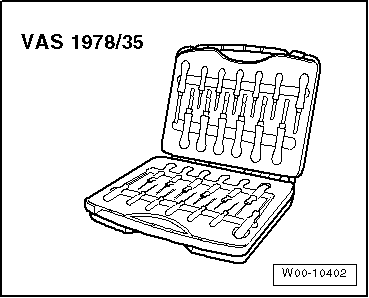

Release tool set -VAS 1978/35
