Volkswagen Golf Service & Repair Manual: Securing engine on engine and gearbox support

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine assy, cylinder blook, crankcase / Removing and installing engine / Securing engine on engine and gearbox support

Special tools and workshop equipment required

Engine and gearbox support -VAS 6095-

Securing engine on engine and gearbox support

Workshop hoist -VAS 6100-

Procedure

Gearbox detached from engine → Chapter.

Securing engine on engine and gearbox support

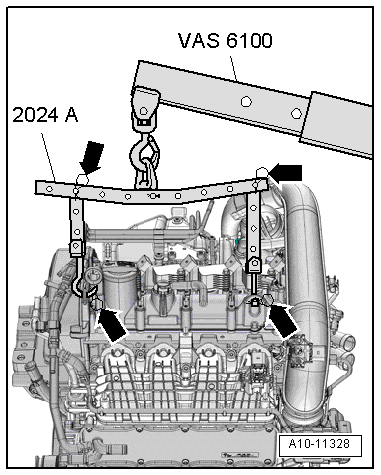

–	Attach lifting tackle -2024 A- on engine and workshop hoist -VAS 6100- as shown in illustration.

Note

In order to match the lifting tackle to the centre of gravity of the engine, the holes in the hook rail must be allocated as shown in the illustration.

The support hooks and retaining pins on the lifting tackle must be secured with locking pins -arrows-.

–	Lift engine off T10497 using workshop hoist -VAS 6100-.

Securing engine on engine and gearbox support

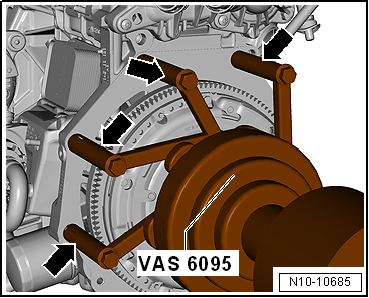

–	Secure engine with pins -arrows- on engine and gearbox support -VAS 6095- as shown in illustration.

Securing engine on engine and gearbox support

Separating engine and gearbox

Special tools and workshop equipment required Shackle -10 - 222 A /12- ...

Installing engine

Procedure Engine/gearbox assembly secured to engine support T10497. Note Renew bolts that are tightened w ...
