Volkswagen Golf Service & Repair Manual: Separating engine and gearbox

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine assy, cylinder blook, crankcase / Removing and installing engine / Separating engine and gearbox

Special tools and workshop equipment required

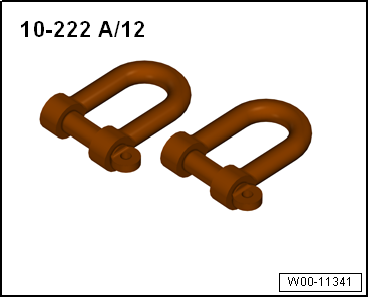

Shackle -10 - 222 A /12-

Separating engine and gearbox

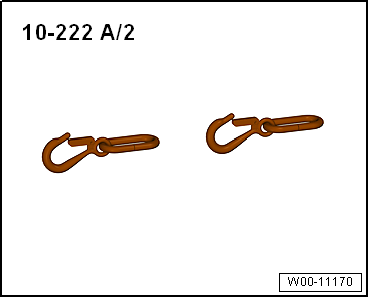

Hooks -10 - 222 A /2-

Separating engine and gearbox

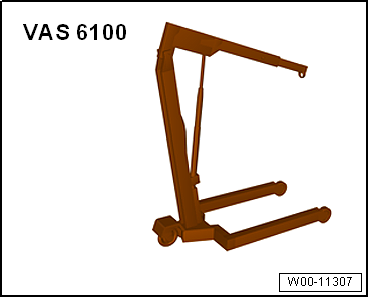

Workshop hoist -VAS 6100-

Procedure

Engine/gearbox assembly removed and attached to engine support T10497.

–	Remove starter → Electrical system; Rep. gr.27.

Separating engine and gearbox

–	Bolt shackle -10 - 222 A /12- to gearbox.

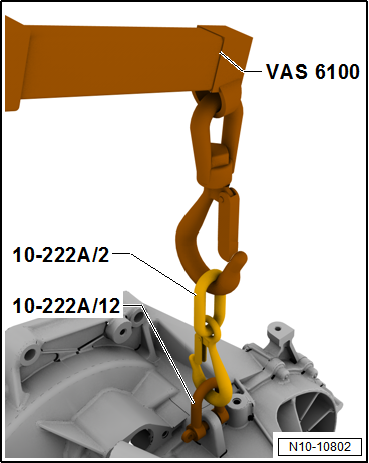

–	Engage work shop hoist -VAS 6100- with hook -10 - 222 A /2- on shackle -10 - 222 A /12-.

Separating engine and gearbox

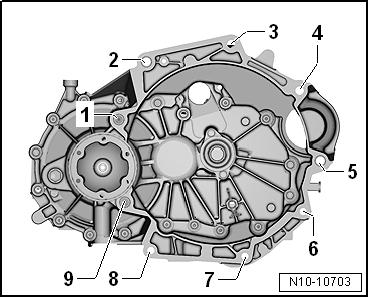

–	Remove bolts -1, 2, 3, 6, 7, 8, 9- securing gearbox to engine.

–	Pull gearbox off engine.
