Designation:

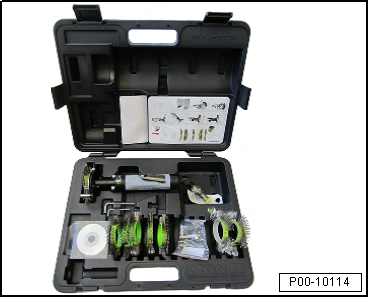

Brush grinder set -VAS 6776-

Product description:

The device is designed to clean surfaces and to remove corrosion in areas that are difficult to reach. Suitable for joints, grooves, wheel housings, flange edges, door folds, etc. The device is pneumatically operated.

Design, features and technical data:

A polyamide belt with wire bristles rotates in a mounting system.

The mounting system is powered by a pneumatic drive unit.

The accelerator rod multiplies the contact force of the bristles.

Corrosion and layers are stripped down to the pores.

Technical data:

Weight: 1.1 kg.

Thread size of pneumatic connection: 1/4" PT (G 1/4" included).

Hose diameter: 3/8" ID (9.5mm).

Speed: 0-2600 rpm.

Air pressure: 7.5 bar / 110 psi.

Air consumption: 14.2 CFM (400 l/min.).

Vibration: 1.45 m/secІ (EN ISO 8662-1; 8662-4).

Noise level: 84 dB (DIN 45635-21; ISO 3744).

Items supplied:

1 brush grinder drive unit

1 x 11 mm mounting system VAS 6446/2

1 swivel joint VAS 6446/9

1 air pressure regulator VAS 6446/8

2 brush grinder belts VAS 6776/1

2 brush grinder belts, left VAS 6776/2

2 brush grinder belts, right 6776/3

2 brush grinder belts, stainless steel VAS 6776/4

2 accelerator rods, inc. arm for use with brush grinder belt for stainless steel

1 hard shell case

Replacement parts:

Brush grinder belt -AS 6776/1- ASE 36308300000

Brush grinder belt -VAS 6776/2- ASE 36308400000

Brush grinder belt -VAS 6776/3- ASE 36308500000

Brush grinder belt -VAS 6776/4- ASE 36308600000

Accelerator rod -VAS 6776/5- ASE 46308700000

Accelerator rod -VAS 6776/6- ASE 46308800000
