Volkswagen Golf Service & Repair Manual: Removing and installing washer pump, »R«

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Windscreen washer system / Removing and installing washer pump, »R«

Special tools and workshop equipment required

Drip tray

Removing

–	Remove washer fluid reservoir → Chapter.

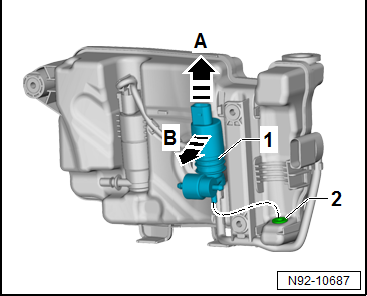

–	Pull washer pump -1- upwards (arrow -A-) out of washer fluid reservoir.

–	Remove washer pump -1- from washer fluid reservoir in direction of arrow -B-.

–	If necessary, remove seal -2- from washer fluid reservoir.

Installing

Install in the reverse order of removal, observing the following:

–	Check sealing grommet -2- for damage.

–	Insert sealing grommet -2- in opening in washer fluid reservoir, and ensure it is seated correctly.

–	Moisten sealing grommet -2- with washer fluid to ease installation of windscreen and rear window washer pump -V59-.

Note

The connections at the pump and hoses are colour-marked to prevent incorrect connection of the washer fluid lines to the windscreen and rear window washer pump -V59-. The hose fittings must be connected to the correct colour-coded pump connections during installation.

Removing and installing washer pump, »R«

Removing and installing windscreen washer pump

Special tools and workshop equipment required Drip tray Removing – Remove front lef ...

Removing and installing washer jets

Removing Note Removal and installation are described for the left side. Removal and installation on the right side are carried out in ...
