Volkswagen Golf Service & Repair Manual: Removing and installing speed sensor on rear axle -G44-/-G46-

Volkswagen Golf Service & Repair Manual / Brake system (hybrid) / ABS, ADR, TCS, EDL, ESP / Sensors / Removing and installing speed sensor on rear axle -G44-/-G46-

  Note
Removal and installation is described for the rear left speed sensor. Removal and installation of the rear right speed sensor is analogous.

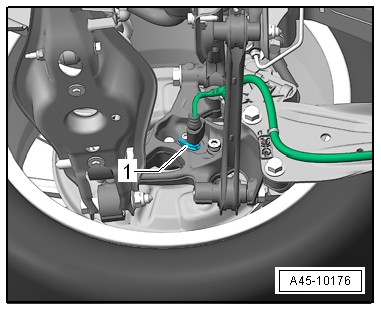

Rear left speed sensor -G46--1-.
Removing
–  Raise vehicle.


Removing and installing speed sensor on rear axle -G44-/-G46-

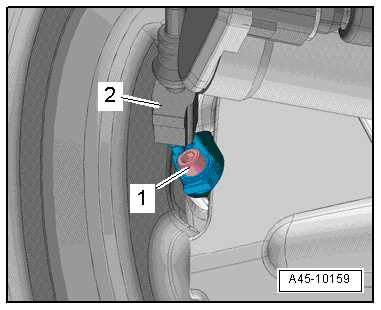

–  Disconnect connector -2- from rear left speed sensor -G46-.
–  Unscrew bolt -1- and pull speed sensor out of wheel bearing housing.
Installing
Install in reverse order of removal, observing the following:
–  Before inserting speed sensor, clean inner surface of hole, and coat speed sensor all over with high-temperature paste G 052 112 A3.
Specified torques
→ Chapter „Assembly overview - speed sensor on rear axle“
