Volkswagen Golf Service & Repair Manual: Removing and installing speed sensors on front axle -G45-/-G47-

Volkswagen Golf Service & Repair Manual / Brake system (hybrid) / ABS, ADR, TCS, EDL, ESP / Sensors / Removing and installing speed sensors on front axle -G45-/-G47-

  Note
Removal and installation is described for the front left speed sensor. Removal and installation of the front right speed sensor is analogous.
Removing
–  Raise vehicle.

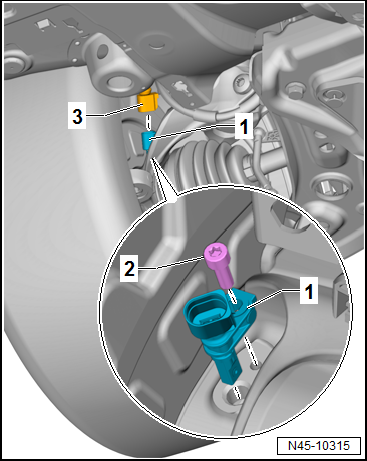

–  Release and disconnect connector -3- from front left speed sensor -G47--1-.
–  Unscrew bolt -2-, and pull front left speed sensor -G47--1- out of wheel bearing housing.
Installing
Install in reverse order of removal, observing the following:
–  Before inserting speed sensor, clean inner surface of hole, and coat speed sensor all-round with high-temperature paste -G 052 112 A3-.
Specified torque
→ Chapter „Assembly overview - speed sensor on front axle“
