Volkswagen Golf Service & Repair Manual: Removing and installing driver side footwell cover
| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1783 |
| – |

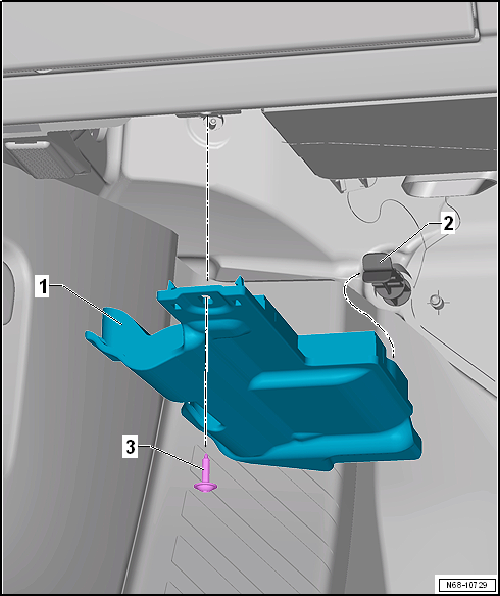

Pull driver side footwell cover -1- out
of retainer -2- and remove it. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - driver side footwell cover“ |
|
1 -
Storage compartment
Removing and installing
→ Chapter
2 -
Cover
3 -
Bolt
Qty. 4
1.5& ...
Removing
–
Open driver side storage compartment -1-
in -direction of arrow-.
–
Release driver side storage compartment -1-
from u ...
